Wire rope core conveyor belt
Keywords: conveyor belt, large capacity, high speed
Purpose and Characteristics:
Steel wire rope core conveyor belt is made of steel wire rope as the skeleton material, which has the characteristics of high tensile strength, long service life, low elongation, good groove forming performance, and good flexural resistance. It is suitable for long-distance, large capacity, and high-speed material transportation and can be widely used in industries such as coal, metallurgy, mining, ports, power, building materials, and chemical industry.
Steel wire core conveyor belts can be divided into general purpose steel wire core conveyor belts (GB/T9770), flame-retardant steel wire core conveyor belts for coal mines (MT/T668), and general purpose steel wire core conveyor belts (HG/T3973) according to their uses.
Product specifications:
Product models are classified by longitudinal tensile strength:
The general purpose steel wire rope core conveyor belt is: ST630、ST800、ST1000、ST1250、ST1600、ST2000、ST2500、ST2800、ST3150、ST3500、ST4000、ST4500、ST5000、ST5400、ST6300 、ST7500
The flame-retardant steel wire rope core conveyor belt used in coal mines is: ST/S630、ST/S800、ST/S1000、ST/S1250、ST/S1600、ST/S2000、ST/S2500、ST/S2800、ST/S3150、ST/S3500、ST/S4000、ST/S4500、ST/S5000、ST/S5400、ST/S6300、ST/S7500

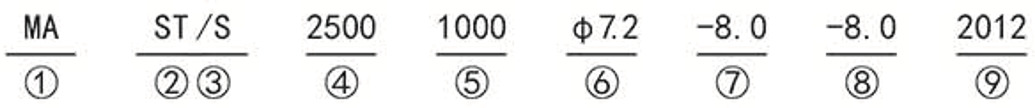

Example of flame retardant steel wire rope core conveyor belt model:
1. Safety sign code 2, steel wire rope core conveyor belt
3. Flame retardant and anti-static code 4, longitudinal tensile strength
5. Band 6, diameter of steel wire rope
7. Thickness of upper cover layer (mm) 8, thickness of lower cover layer (mm)
9. Year of manufacture

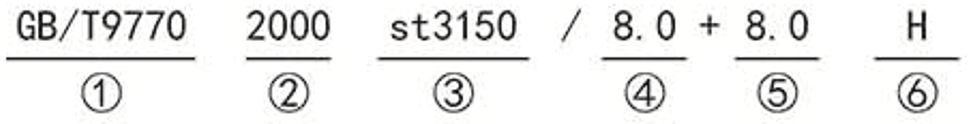

Example of Model for Ordinary Steel Wire Rope Core Conveyor Belt:
1. Standard code 2, width specification
3. Strength specification 4, thickness of upper covering layer (mm)
5. Thickness of the lower covering layer (mm) 6. Grade code of the covering layer
